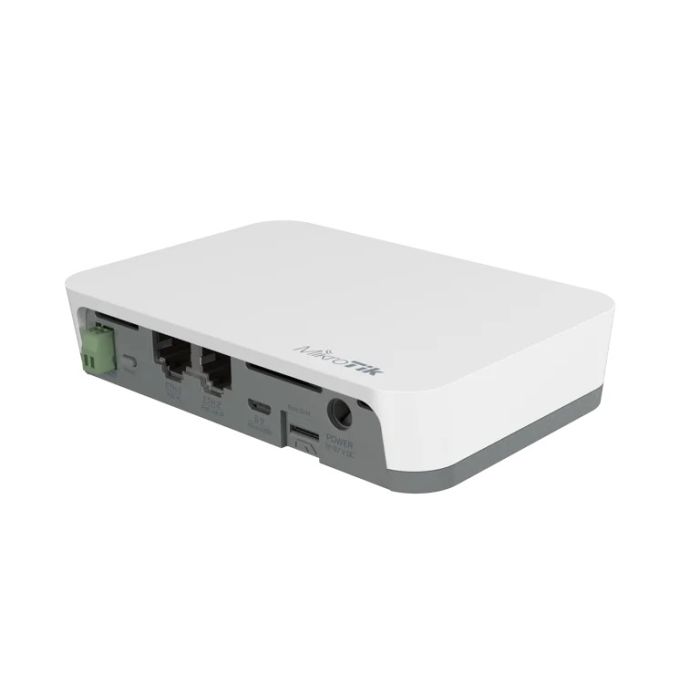

MikroTik RB924i-2nD-BT5&BG77 KNOT RouterOS L4
Specifications
| Параметър |
Стойност |
| Product code |
RB924i-2nD-BT5&BG77 |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| RouterOS license |
4 |
| Operating System |
RouterOS (v7) |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 100'000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
Powering
| Параметър |
Стойност |
| Number of DC inputs |
3 (PoE-in, MicroUSB, DC jack) |
| DC jack input Voltage |
12-57 V |
| MicroUSB input Voltage |
5 V |
| Max power consumption |
18 W |
| Max power consumption without attachments |
5 W |
| PoE in |
Passive PoE, 802.3af/at |
| PoE in input Voltage |
12-57 V |
| Cooling type |
Passive |
PoE-out
| Параметър |
Стойност |
| PoE-out ports |
Ether2 |
| PoE out |
802.3af/at |
| Total output power |
12 W |
Mobile
| Параметър |
Стойност |
| Mobile module |
Quectel BG77 |
| LTE Category |
Cat M1 / Cat NB2 |
| Cat M1 bands |
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 |
| Cat NB2 bands |
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85 |
| GNSS standards |
GPS, GLONASS, BeiDou, Galileo, QZSS |
Wireless specifications
| Параметър |
Стойност |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz Number of chains |
2 (dual-chain) |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
1.5 |
| Wireless 2.4 GHz chip model |
QCA9531 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
Bluetooth specifications
| Параметър |
Стойност |
| Bluetooth version |
5.2 |
| Bluetooth antenna gain |
2 dBi |
| Bluetooth RF connector type |
u.FL |
Ethernet
| Параметър |
Стойност |
| 10/100 Ethernet ports |
2 |
| Ethernet port with PoE-out |
1 (Ether2) |
