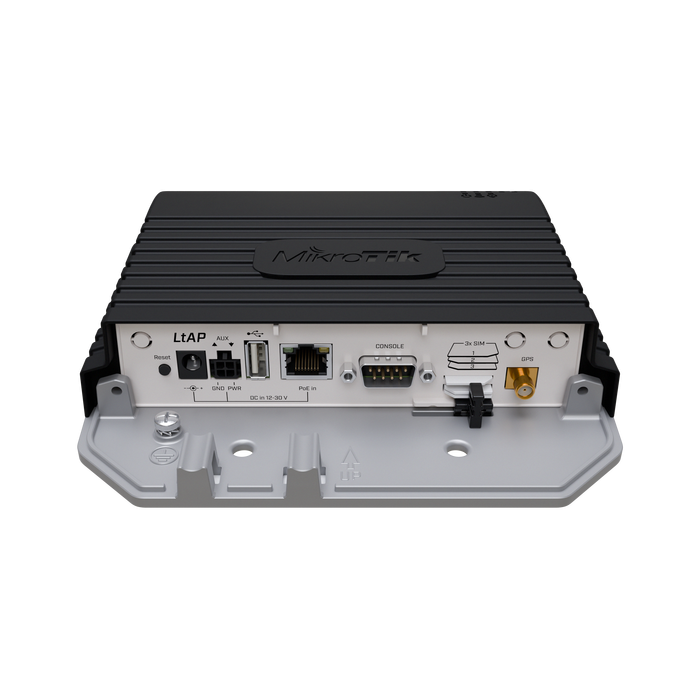

MikroTik LtAP-2HnD&R11e-LTE7 LtAP LTE7 kit
SKU
RV826B7375
158,00 €
Specifications
- Product code LtAP-2HnD&R11e-LTE7
- Suggested price $169.00
- Architecture MMIPS
- CPU MT7621AT
- CPU core count 2
- CPU nominal frequency 880 MHz
- CPU Threads count 4
- RouterOS license 4
- Operating System RouterOS v7
- Size of RAM 128 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
Powering
- Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
- DC jack input Voltage 12-30 V
- Automotive input Voltage 12-27 V
- Max power consumption 24 W
- Max power consumption without attachments 12 W
- PoE in Passive PoE
- Cooling type Passive
- PoE in input Voltage 12-30 V
Mobile
- 3G Category R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
- 3G bands 1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
8 (900 MHz)
- LTE Category 7 (DL: 300 Mbps; UL: 100 Mbps)
- MIMO DL 2x2
- MIMO UL 1x1
- LTE FDD bands 1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
32 (1500 MHz)
- LTE TDD bands 38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
- TAC 35312597
Wireless specifications
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz Number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 2.5
- Wireless 2.4 GHz chip model AR9382
- Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
- 10/100/1000 Ethernet ports 1
Peripherals
- Number of SIM slots 3 Modem (Mini SIM)
- MiniPCI-e slots 2
- Serial console port RS232
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
Other
- PCB temperature monitor Yes
- Voltage Monitor Yes
- GNSS standards GPS
Certification & Approvals
- Certification CE, EAC, ROHS
- IP 54
