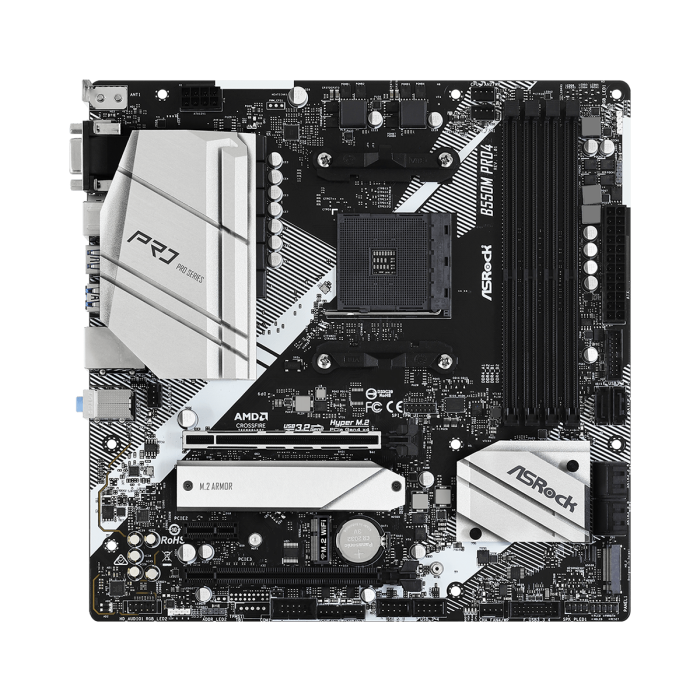

Дънна платка ASRock B550M Pro4 sAM4 4xDDR4 M.2 VGA HDMI DP mATX
SKU
ASR-MB-B550M-PRO4
108,00 €
Дънна платка ASRock B550M Pro4, AM4, 4xDDR4
- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
- 8 Power Phase Design, Digi Power
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- AMD CrossFireX™
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
- 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
- Realtek Gigabit LAN
| Сокет | AM4 |
|---|---|
| Чипсет | AMD B550 |
| форм фактор | mATX |
| Макс. памет | 128 GB |
| Слот за памет | 4 x DDR4 |
| HDD interface | 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezan |
| Raid | да |
| Слот PCI Expres x 16 | 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode) |
| Слот PCI Express x 1 | 1 |
| Аудио | 7.1 CH HD Audio with Content Protection (Realtek ALC1220/ALC1200 Audio Codec) |
| USB портове | 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear) |
| VGA | да |
| DVI | не |
| HDMI | да |
| Display port | да |
| Гаранция | 36 месеца |
